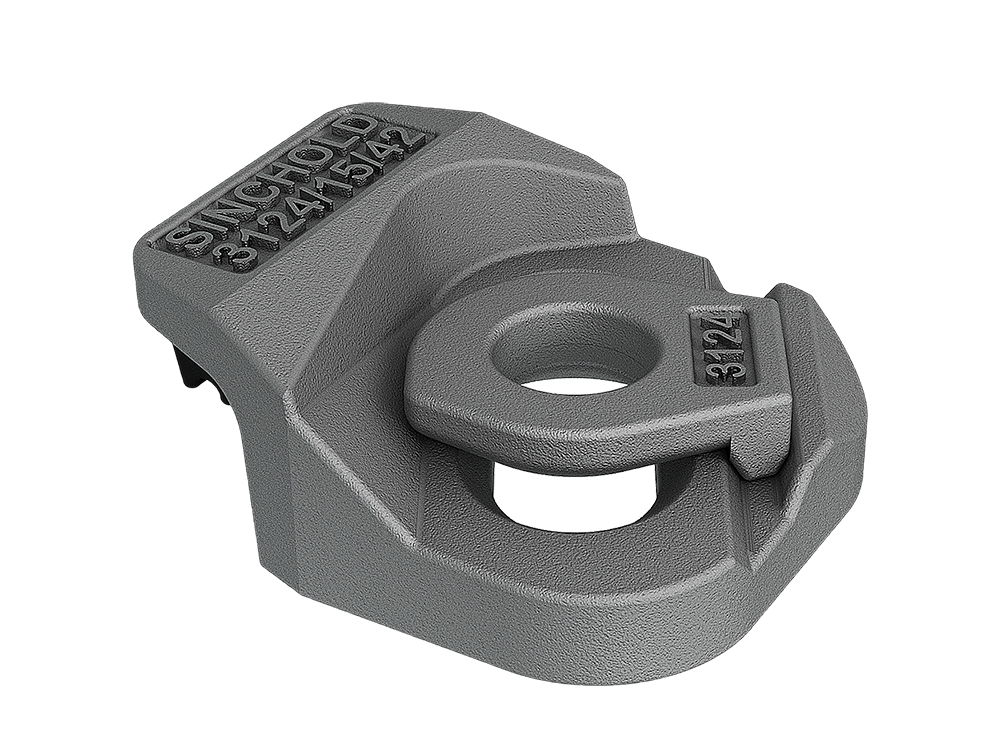

Track platen - perforated type (1).jpg

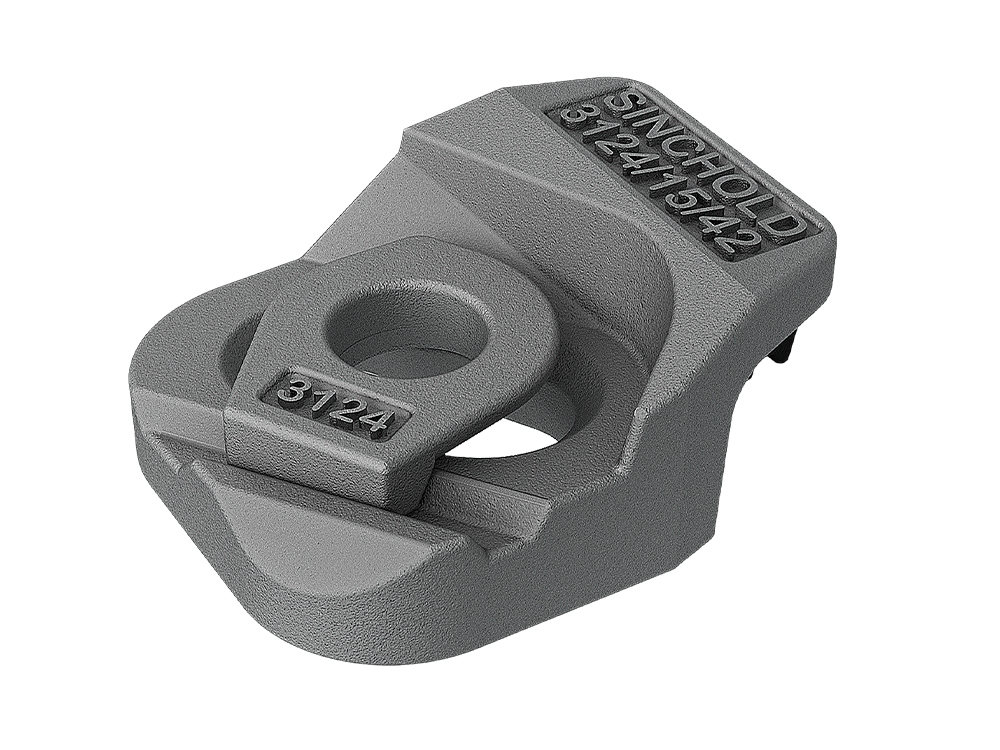

Track platen - perforated type (2).jpg

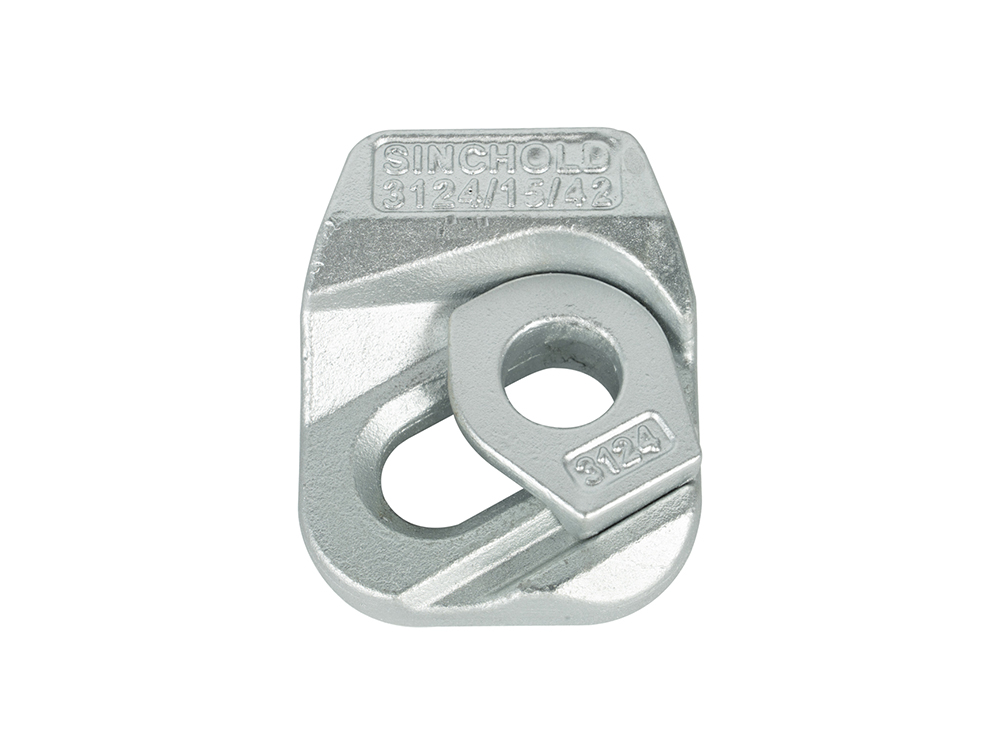

Track platen - perforated type (3).jpg

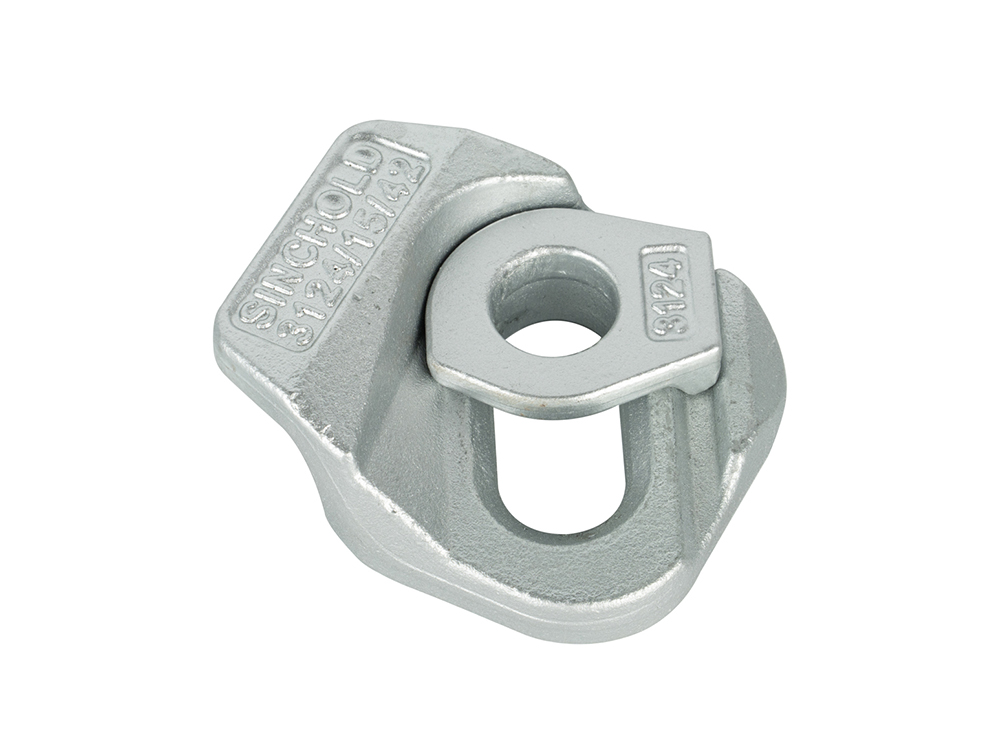

Track platen - perforated type (4).jpg

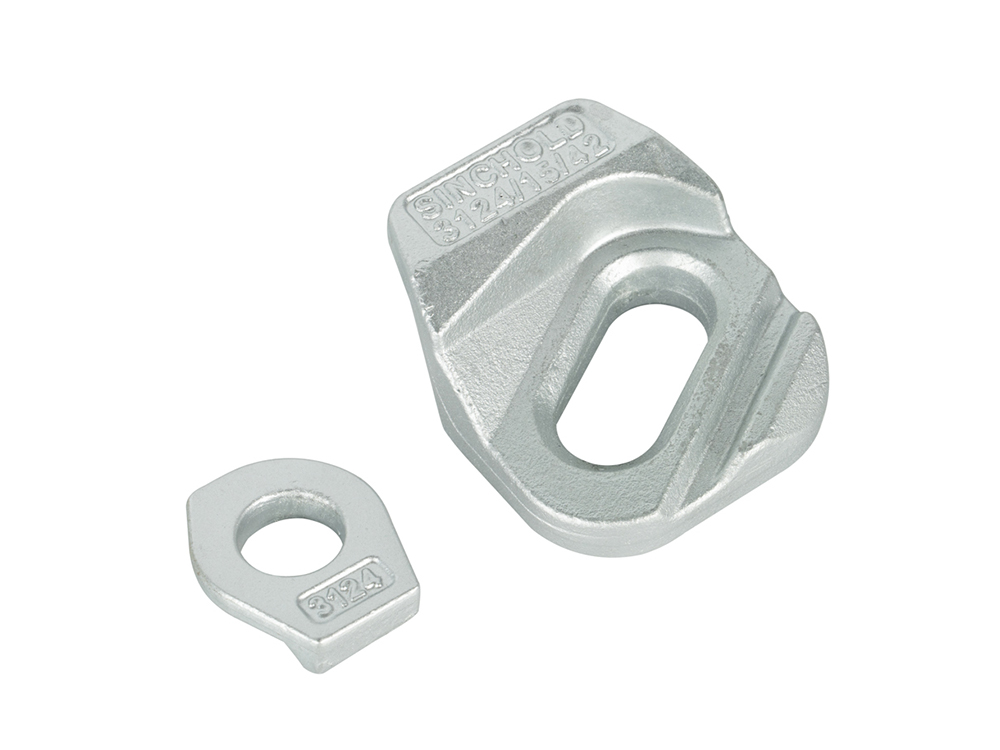

Track platen - perforated type (5).jpg

Bolted Rail Clamps (Clips) For Overhead Travelling Cranes, Gantry Cranes

General Description

The bolted rail clamp is a track-fixing accessory featuring perforations on the upper metal press plate. This type of clamp is typically used to secure rails, I-beams, concrete beams, or ground surfaces, ensuring the stability and safety of the rail or crane. The perforation (bolting) design not only reduces the weight of the rail clamp but also enhances its air permeability and heat dissipation performance.

The bolted rail clip is compact in design and usually manufactured from high-strength metal materials, such as high-quality carbon steel. These materials offer excellent corrosion resistance, strength, and wear resistance, making them suitable for a variety of harsh working environments. The shape and size of the perforations (bolting) can be customized to meet specific application requirements.

    Contact us

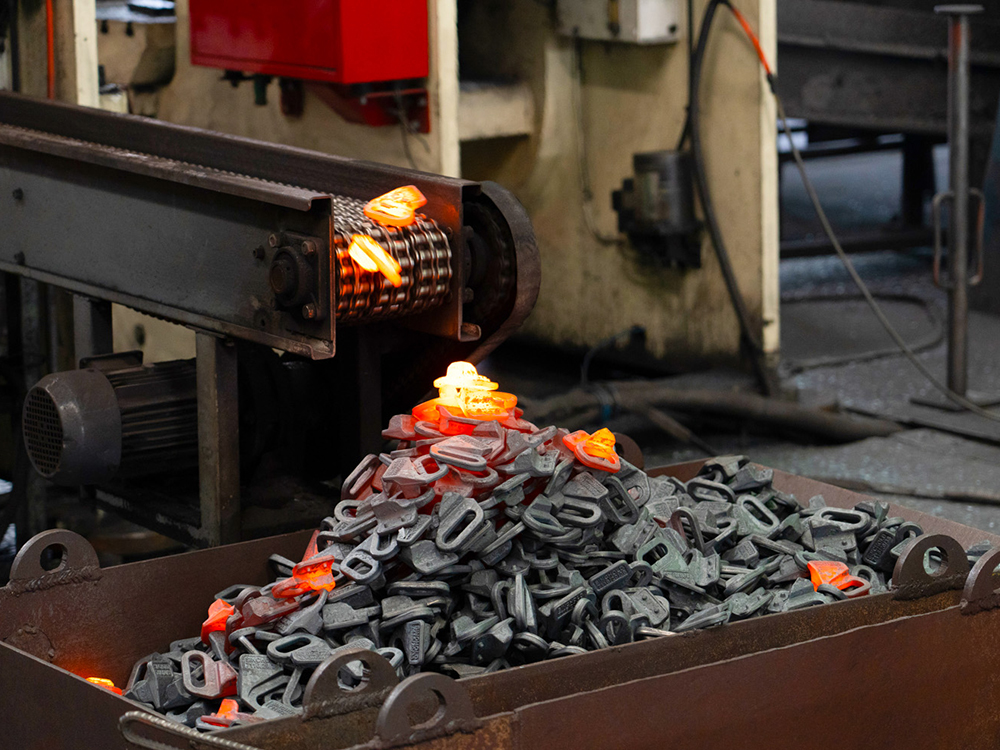

    Track platen - perforated type (6)

    Main Features

    Track Fixing:

    The primary function of the bolted rail clamp is to secure the track, preventing displacement under dynamic loads such as train or crane operation. By fastening bolts or nuts, the rail clamp can be tightly fitted to the track, ensuring the stability of the track system.

    Excellent Fastening Performance:

    The boltable rail clamp firmly secures the track to the foundation through the tightening force of the bolts, effectively preventing track displacement.

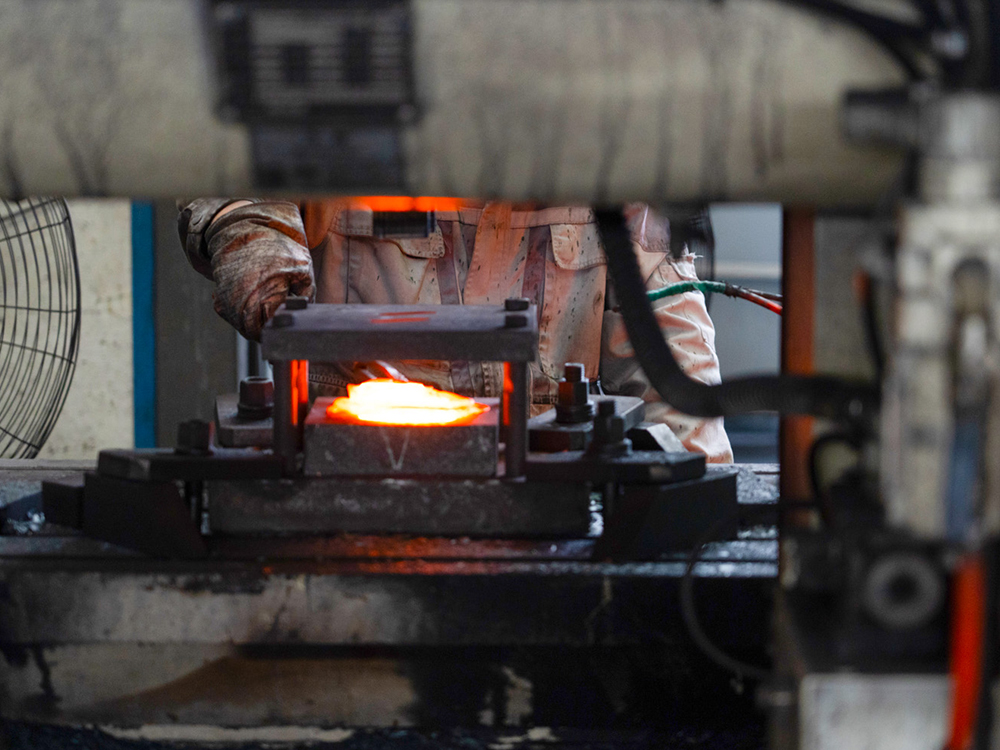

    Track platen - perforated type (7)

    Strong Versatility

    The boltable rail clamp is suitable for various types of tracks, such as light rail and heavy rail. Only the specifications of the bolts, the size of the pressure plate, and other parameters need to be adjusted to fit different applications.

    Easy Installation and Maintenance:

    The process of installing and removing the pressure plate is relatively simple. You only need to use tools to tighten or loosen the bolts. This simplifies maintenance, reduces costs, and makes it easier to adjust the track or replace parts when necessary.

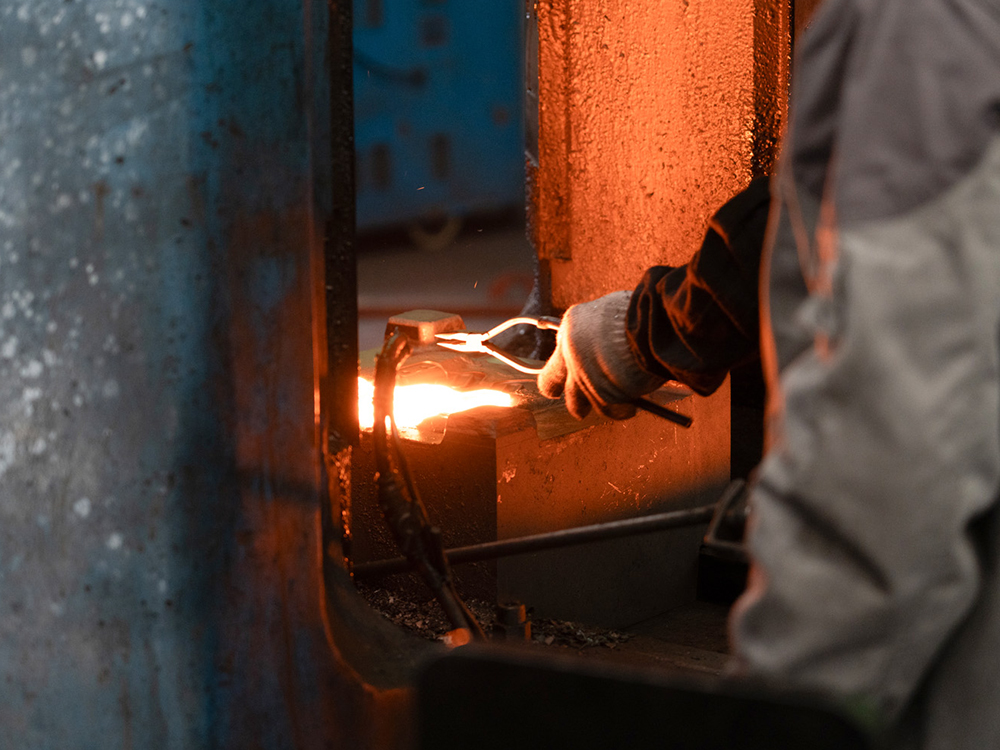

    Track platen - perforated type (8)

    Main Features

    Strong Adaptability:

    The bolted rail clamp is designed to withstand various environmental conditions, such as moisture and corrosion. By using high-strength metal materials (e.g., high-quality carbon steel) and special surface treatments (e.g., galvanization), the rail clamp can operate effectively in these environments for extended periods without damage.

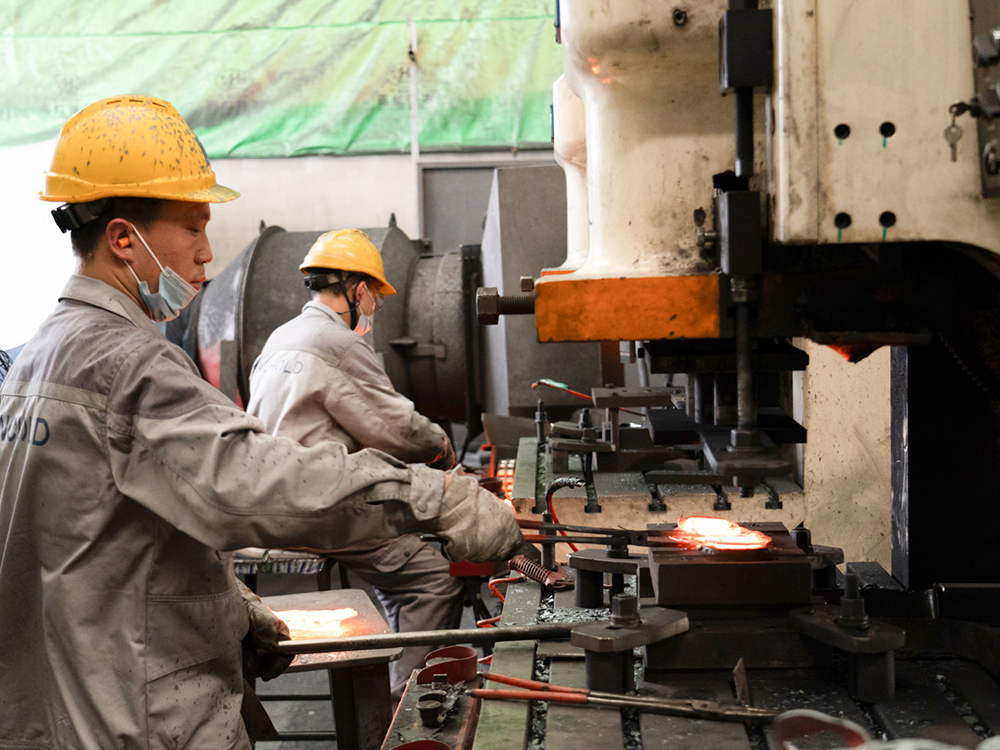

    Track platen - perforated type (10)

    Summary

    The bolted rail clamp is a high-performance track-fixing device with a wide range of applications. Through thoughtful structural design, appropriate material selection, and correct installation and maintenance methods, it can fully utilize its functional advantages, such as track fixation, breathable heat dissipation, and weight reduction, to meet the demands of various application scenarios. Selecting the right rail clamp depends not only on size and mechanical considerations but also on the specific requirements of the application. Therefore, we recommend contacting us to discuss your needs in detail.
